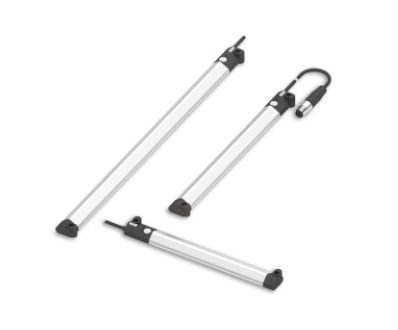

Balluff Manyetik alan pozisyonlama sistemleri
Measuring range128 mm
Dimension17.5 x 9.6 x 138 mm
Analog outputAnalog, voltage/Analog, current selectable 0…10 V/4…20 mA
InterfaceIO-Link 1.1
Resolution≤ 1 µm (IO-Link), 12 Bit (analog)
Repeat accuracy100 µm
Non-linearity typ.±250 µm
Operating voltage Ub15...30 VDC
ConnectionCable with connector, M8x1-Male, 4-pin, 0.5 m, PUR
Housing materialPA 12
Aluminum
Aluminum
Ambient temperature-25...85 °C
IP ratingIP67
Approval/ConformityCE
UKCA
cULus
WEEE
UKCA
cULus
WEEE
