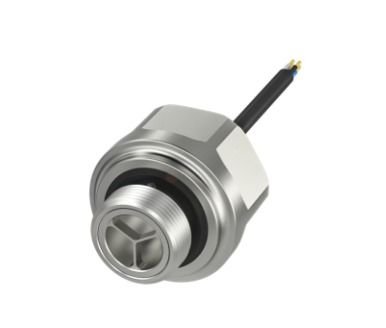

UygulamaPosition monitoring in short stroke hydraulic cylinders
Ölçüm aralığı0...80 mm
Maksimum doğrusalsızlık±250 µm
Tekrarlama hassasiyeti± 50 µm
Maksimum nominal basınç350 bar
ArayüzIO-Link 1.1
Analog, voltaj/Analog, akım anahtarlanabilir 4…20 mA/0…10 V
Pin 4: Push-pull NO/NC
Pin 2: PNP/NPN/push-pull NO/NC
Analog, voltaj/Analog, akım anahtarlanabilir 4…20 mA/0…10 V
Pin 4: Push-pull NO/NC
Pin 2: PNP/NPN/push-pull NO/NC
Çalışma voltajı Ub10th..30 VDC
BağlantıKablo, 2.0 m, TPU
Ortam sıcaklığı0...85 °C
IP derecesiIP67
Onay/UyumlulukCE
UKCA
cULus
WEEE
UKCA
cULus
WEEE
Secondary features for condition monitoringInternal temperature monitoring
Secondary featuresIdentification
Device Discovery
Switching Profiles
Signal Quality Monitoring
Signal Delay
Switching Counter
Basic Statistics
Logic Blocks
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Variant Configuration
Pin Assignment
Device Discovery
Switching Profiles
Signal Quality Monitoring
Signal Delay
Switching Counter
Basic Statistics
Logic Blocks
Operating Hours Counter
Boot Cycle Counter
Voltage and Current Monitoring
Variant Configuration
Pin Assignment
